X-TAPER HEADTUBE
A tapered head tube with 1 1/8" bearings at the top and 1 ¼" or 1 ½" at the bottom gives the front end exceptional stiffness, and precise handling adds confidence.
SALE -25%
Photos are for illustration only. Please refer to the product specification.
Merida

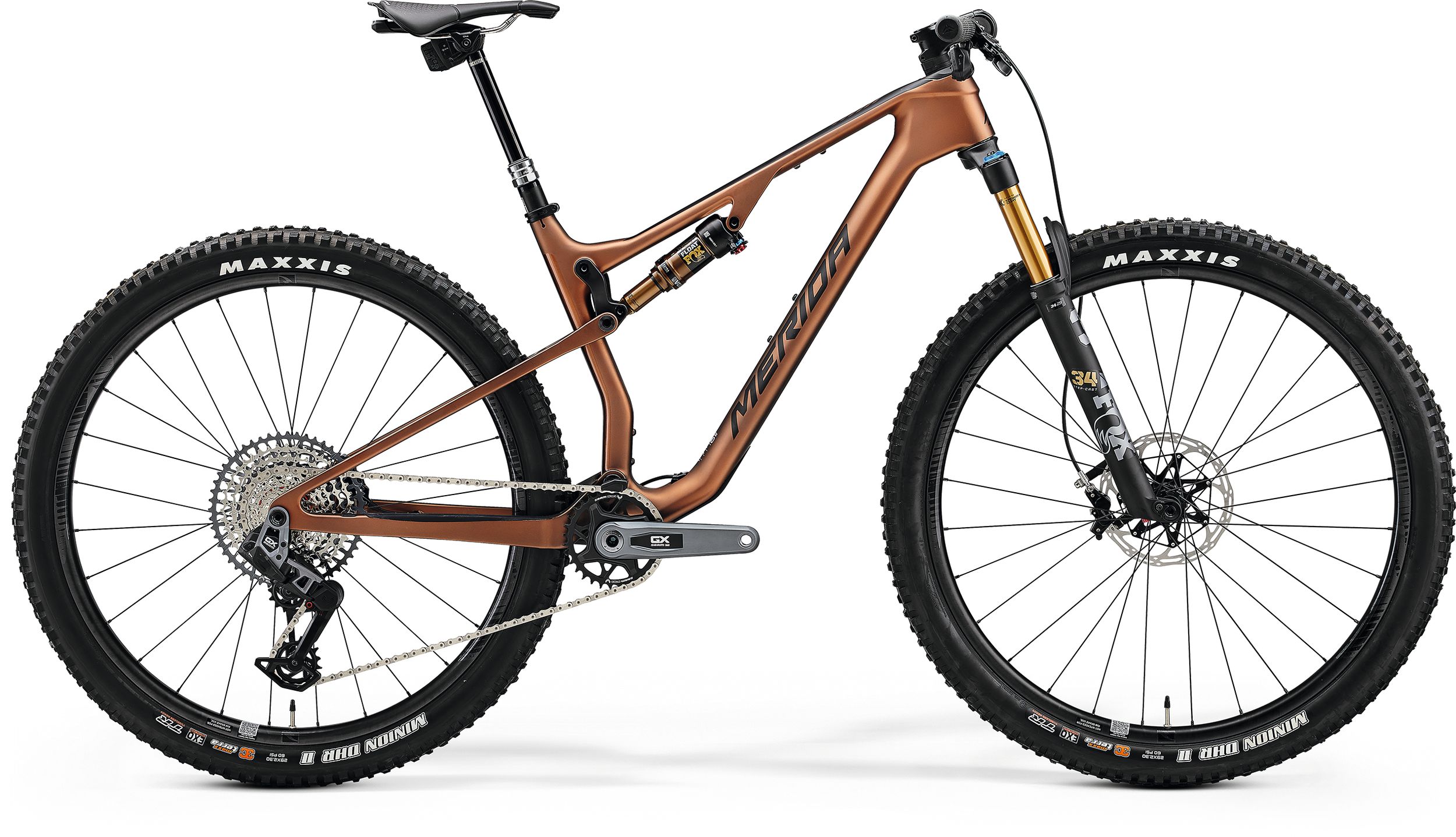

Merida NINETY-SIX 9000 matná bronzová metalíza(čierny) 2024
Original price was: 7999,00 €.5999,00 €Current price is: 5999,00 €.
Možnosť kúpy na splátky cez Home Credit
Vybavíte v predajni alebo priamo v mobile. Spýtať sa · 0905 560 430
Neúprosná rýchlosť v stúpaniach a skvelá stabilita v zjazdoch vďaka ľahkému karbónovému rámu a vidlici so 120 mm zdvihom. Downcountry? Cross-country? Tento bicykel to zvládne všetko, s prvotriednym vybavením na mieru.
- Karbónový rám Ninety-Six CF4 III
- Brzdy Sram Level Silver Stealth
- 1×12 prevodov, Sram GX Eagle Transmission AXS
- Kolesá Reynolds TR 309/289 XC
- Hmotnosť 11,99 kg
Key specs
Frame sizeM
Wheel size29"
📏 Which size is right for me?
Your height:
Move the slider to your height.
Manufacturer's guideline figures. Full size chart
Free delivery over €100
2-year warranty
14 days to return
Secure payment
Ninety-Six CF4 IIIFrame
1×12Gears
Sram AXS POD ControllerShifting
Reynolds TR 309/289 XCWheels
Merida NINETY-SIX 9000 matná bronzová metalíza(čierny) 2024
Be the first to review “Merida NINETY-SIX 9000 matná bronzová metalíza(čierny) 2024”
You must be logged in to post a review.
Merida NINETY-SIX 9000 matná bronzová metalíza(čierny) 2024
Technical specification
Frame and fork
| Model year | 2024 |
|---|---|
| Frame | Ninety-Six CF4 III; 100mm zdvih zadnej stavby; karbón; max.rozmer Z plášťa: 29x2.3"; 148x12mm; BSA |
| Fork | Fox 34 Float SC Factory; vzduchová; zdvih 120mm; kónický krk; 3-polohový Lockout; 44mm offset vidlice; max.rozmer P plášťa: 29x2.4" |
| Weight | 11,99 kg |
| Extras | Merida V-Mount Box a Minináradie |
| Extras | EP Powerpack 2 Battery |
| Extras | Trail Mount & Velcro páska |
| Extras | V-mount adaptér |
Drivetrain
| Number of gears | 1x12 |
|---|---|
| Rear derailleur | Sram GX Eagle Transmission AXS; bezdrôtový; T-Type |
| Front shifter | Sram AXS POD Controller |
| Rear shifter | Sram AXS POD Controller |
| Crankset | Sram GX Eagle; 32z |
| Crank length | S/170mm, od veľkosti M 175mm |
| Bottom bracket | Sram BB DUB BSA 73 MTB WIDE |
| Cassette | Sram GX Eagle Transmission; 10-52z; 12s |
| Chain | Sram GX Eagle Transmission; Flattop |
Brakes
| Brake levers | included |
|---|---|
| Front brake | Sram Level Silver Stealth; 4-piestová |
| Front rotor | Sram Centerline; 180mm |
| Rear brake | Sram Level Silver Stealth; 2-piestová |
| Rear rotor | Sram Centerline; 160mm |
Wheels
| Front hub | included |
|---|---|
| Front axle | included |
| Rear hub | included |
| Rear axle | Merida Expert TR; s odnímateľným upinákom so 6/4 mm imbusovým kľúčom |
| Wheelset | Reynolds TR 309/289 XC; 110x15mm; 148x12mm; 30/28mm vnútorná šírka ráfika; Centerlock; Sram XD; karbón; Tubeless Ready (TL páska aj ventily sú súčasťou); "Reynolds Lifetime Warranty |
| Front tyre | Maxxis Minion DHR II; 29x2.3"; skladací; TR EXO 3C MaxxTerra |
| Rear tyre | Maxxis Minion DHR II; 29x2.3"; skladací; TR EXO 3C MaxxTerra |
Cockpit and saddle
| Handlebar | Merida Expert CC; Alu; šírka 760mm; rovné |
|---|---|
| Stem | Merida Team CC III; Alu; 31.8mm priemer objímky riadítok; -6° uhol |
| Stem length | 60 mm pre všetky veľkosti rámu |
| Headsets | Acros ICR Merida integrovaný krk; horné a dolné IPS tesnenie |
| Grips and bar tape | Merida Expert EC |
| Seatpost | Rock Shox Reverb AXS; 30.9mm; 0mm offset; S/125mm, M/150mm, L-XL/170mm |
| Seatpost clamp | Merida Expert |
| Saddle | Prologo Scratch M5 PAS Tirox; V-mount adaptér; vrátane Merida minináradia |
Other
| Shock | Fox Float Factory; 2-polohová páčka |
|---|
Manufacturer's data. Components may differ in detail between production batches — we will gladly check in store.
Frame geometry
| Frame size | S | M | L | XL |
|---|---|---|---|---|
| Wheel size | 29" | 29" | 29" | 29" |
| St - seat tube (mm) | 400 | 440 | 470 | 500 |
| Tt - top tube (mm) | 581 | 601 | 624 | 648 |
| Cs - chainstay length (mm) | 435 | 435 | 435 | 435 |
| Hta - head tube angle (°) | 67 | 67 | 67 | 67 |
| Sta - seat tube angle (°) | 75 | 75 | 75 | 74.5 |
| Bd - bottom bracket height (mm) | 36 | 36 | 36 | 36 |
| Ht - head tube length (mm) | 95 | 95 | 105 | 115 |
| Fl - fork length (mm) | 530 | 530 | 530 | 530 |
| R - reach (mm) | 420 | 440 | 460 | 480 |
| S - stack (mm) | 595 | 595 | 605 | 614 |
| Wb - wheelbase (mm) | 1136 | 1156 | 1180 | 1203 |
| Sh - standover height (mm) | 740 | 741 | 747 | 749 |
Manufacturer's dimensions in millimetres, angles in degrees. Not sure which size to choose? See the size chart or give us a call.
Frame technologies
INTERNAL CABLE ROUTING
Cables are routed inside the frame, entering and exiting through dedicated ports. The bike looks cleaner and the cables are also protected from moisture and dirt.
NANO MATRIX CARBON
Pre zvýšenie odolnosti karbónových rámov sú vrstvy karbónu spojené živicou s pridanými nanočasticami, ktoré zvyšujú odolnosť voči nárazom až o 40%
AWS
Pri výrobe jednotlivých karbónových dielov používame nafukovaciu vložku, ktorá zaručí, že vnútri trubiek sa nevytvoria vrásky, ktoré zvyšujú hmotnosť a môžu oslabiť trubku. Vďaka tomu sú výsledné rámy ľahšie, tuhšie a pevnejšie.
NON-SLIP TIGHTENING
Some bolts only need to be tightened with a TORX 30 key from one side, with no risk of the opposite side turning or shifting, which makes tightening important components much simpler and more straightforward.
P-FLEX
To reduce weight and increase frame stiffness, we removed one of the pivots on the seatstays. Conventional bearings are replaced by the flex properties of the frame material, which provides enough compliance without any negative effect on frame life.
WIRE PORT
Špeciálne tvarované hlavové zloženie merida navrhnuté tak, že všetky káble ako lanká radenia alebo brzdové hadičky vstupujú do rámu cez hlavové zloženie, vďaka čomu sú lanká ukryté a takmer neviditeľné, bez nutnosti konštrukčných zásahov do rámu. V závislosti od modelu sú lanká vedené vnútrom po celej ich dĺžke (vrátane riadítok a predstavca) alebo ako semi-integrované, keď do rámu vchádzajú v oblasti pod predstavcom.
Technology descriptions are provided by the manufacturer MERIDA.
